Nichicon
PCV1E151MCL7GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 25V, 20% +Tol, 20% -Tol, 150uF, Surface Mount, 3333, CHIP, ROHS COMPLIANT
PackageRadial
Capacitance150uF
Voltage Rating25V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Nichicon PCV1E151MCL7GS technical specifications.
General
Capacitance
150uF
Package/Case
Radial
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
23mR
Height - Seated (Max)
0.394inch
Lead Free
Lead Free
Leakage Current
750uA
Length
10mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
3.6A
RoHS Compliant
Yes
Series
CV
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCV1E151MCL7GS Datasheet
Download the complete datasheet for Nichicon PCV1E151MCL7GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

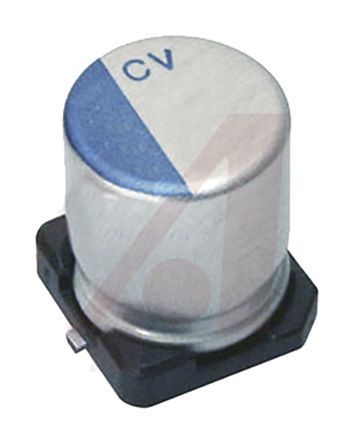

Product Images
