390µF, 25V polarized aluminum electrolytic capacitor with 20% tolerance. Features a 21mΩ ESR and 4.2A ripple current capability. Surface mount, cylindrical construction with a 10mm diameter and 12.7mm height. Operating temperature range from -55°C to 105°C, with a 3000-hour life rating. RoHS compliant.
PackageRadial
Voltage25V
Capacitance390uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon PCV1E391MCL2GS technical specifications.
General
| Capacitance | 390uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| ESR (Equivalent Series Resistance) | 21mR |
| Height | 12.7mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 1.95mA |
| Length | 12.7mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Ripple Current | 4.2A |
| RoHS Compliant | Yes |
| Series | CV |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCV1E391MCL2GS Datasheet
Download the complete datasheet for Nichicon PCV1E391MCL2GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

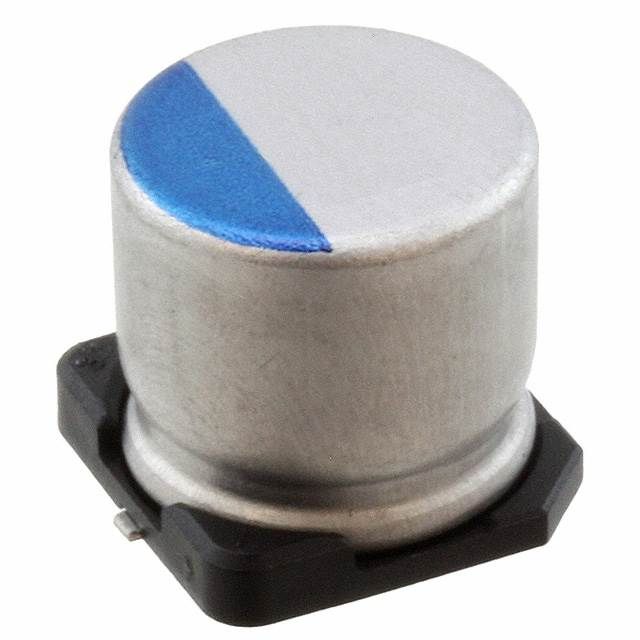

Product Images
