Technical Specifications
Nichicon PCV1E470MCL2GS technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Diameter | 6.3mm |
| ESR (Equivalent Series Resistance) | 49mR |
| Height | 6mm |
| Height - Seated (Max) | 0.236inch |
| Lead Pitch | 2.1mm |
| Leakage Current | 235uA |
| Length | 6mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 1.3A |
| RoHS Compliant | Yes |
| Series | CV |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCV1E470MCL2GS Datasheet
Download the complete datasheet for Nichicon PCV1E470MCL2GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

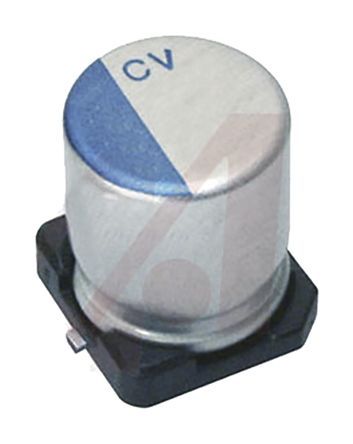

Product Images
