Surface mount aluminum electrolytic capacitor featuring a 12µF capacitance and 50V DC rated voltage. This polarized capacitor offers a low ESR of 55mΩ and a dissipation factor of 0.12%. Designed for high reliability, it operates within a temperature range of -55°C to 105°C and boasts a ripple current rating of 1.2A. The component is RoHS compliant and packaged for automated assembly.
PackageRadial
Voltage50V
Capacitance12uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon PCV1H120MCL2GS technical specifications.
General
| Capacitance | 12uF |
| Package/Case | Radial |
| Diameter | 6.3mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 55mR |
| Height | 6mm |
| Height - Seated (Max) | 0.236inch |
| Lead Pitch | 2.1mm |
| Leakage Current | 120uA |
| Length | 6mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 1.2A |
| RoHS Compliant | Yes |
| Series | CV |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCV1H120MCL2GS Datasheet
Download the complete datasheet for Nichicon PCV1H120MCL2GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

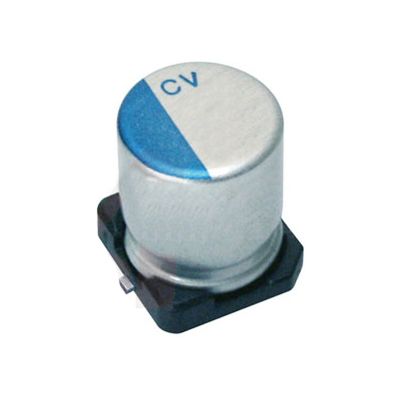

Product Images
