Surface mount aluminum electrolytic capacitor featuring 8.2µF capacitance and 50V DC rated voltage. This polarized capacitor offers a 20% tolerance and a low ESR of 81mΩ. Designed for high ripple current applications with 800mA rating, it operates across a wide temperature range from -55°C to 105°C and boasts a 3000-hour life. RoHS compliant and packaged on tape and reel for automated assembly.
PackageRadial
Voltage50V
Capacitance8.2uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon PCV1H8R2MCL1GS technical specifications.
General
| Capacitance | 8.2uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| ESR (Equivalent Series Resistance) | 81mR |
| Height | 6mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 2.1mm |
| Leakage Current | 82uA |
| Length | 6mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 800mA |
| RoHS Compliant | Yes |
| Series | PCV |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCV1H8R2MCL1GS Datasheet
Download the complete datasheet for Nichicon PCV1H8R2MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

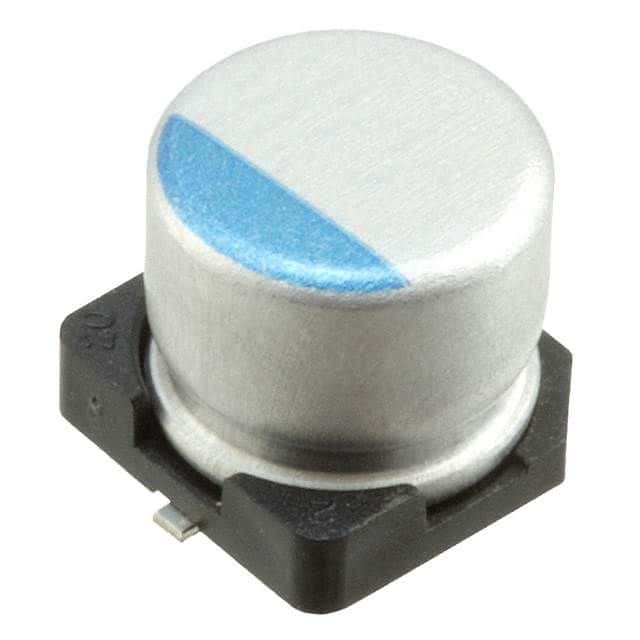

Product Images
