Nichicon
PCV1J270MCL2GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 63V, 20% +Tol, 20% -Tol, 27uF, Surface Mount, 4141, CHIP, ROHS COMPLIANT
PackageRadial
Capacitance27uF
Voltage Rating63V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Nichicon PCV1J270MCL2GS technical specifications.
General
Capacitance
27uF
Package/Case
Radial
ESR (Equivalent Series Resistance)
38mR
Leakage Current
340uA
Length
8mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Ripple Current
2.5A
RoHS Compliant
Yes
Series
PCV
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
63V
DC Rated Voltage
63V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCV1J270MCL2GS Datasheet
Download the complete datasheet for Nichicon PCV1J270MCL2GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

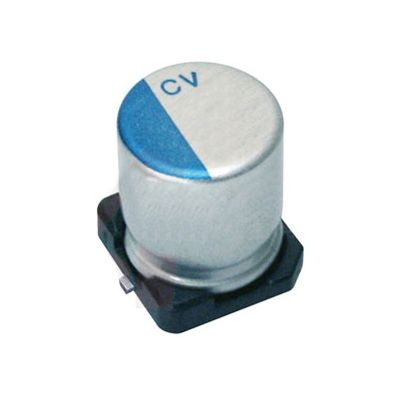

Product Images
