63V, 47µF polarized aluminum electrolytic capacitor with 20% tolerance. Features a low 30mΩ ESR and 3.3A ripple current capability. Designed for surface mount applications with a 10mm length and radial package. Operates across a wide temperature range from -55°C to 105°C. RoHS compliant and supplied in tape and reel packaging.
PackageRadial
Capacitance47uF
Voltage Rating63V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Nichicon PCV1J470MCL2GS technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| ESR (Equivalent Series Resistance) | 30mR |
| Lead Free | Lead Free |
| Leakage Current | 592uA |
| Length | 10mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Ripple Current | 3.3A |
| RoHS Compliant | Yes |
| Series | PCV |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCV1J470MCL2GS Datasheet
Download the complete datasheet for Nichicon PCV1J470MCL2GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

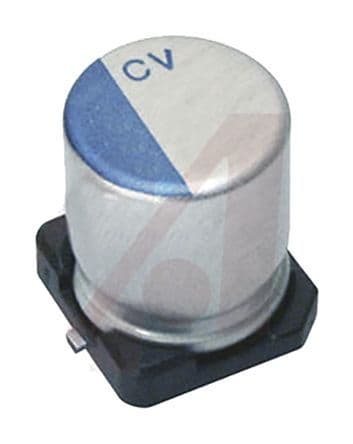

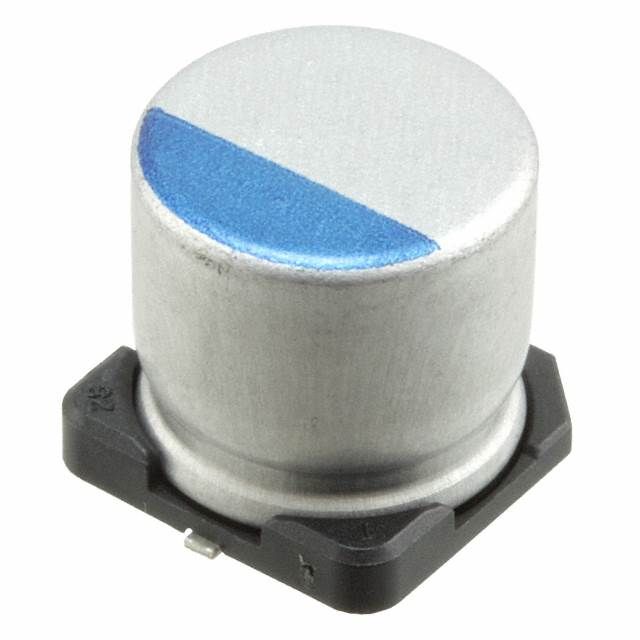

Product Images
