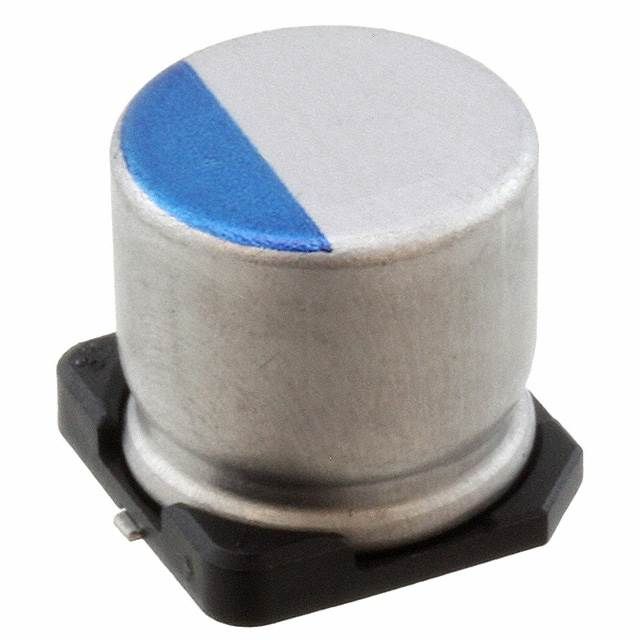

63V, 56µF polarized aluminum electrolytic capacitor with a 20% tolerance. Features a 28mΩ ESR and 3.4A ripple current capability, operating from -55°C to 105°C. This surface mount component offers a 3000-hour life and low leakage current of 706µA. Compliant with RoHS standards, it is supplied in a 10mm diameter radial package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon PCV1J560MCL2GS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon PCV1J560MCL2GS technical specifications.
| Capacitance | 56uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 28mR |
| Lead Free | Lead Free |
| Leakage Current | 706uA |
| Length | 12.7mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 400 |
| Packaging | Cut Tape |
| Ripple Current | 3.4A |
| RoHS Compliant | Yes |
| Series | PCV |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
| Weight | 0.045856oz |
| RoHS | Compliant |
