Nichicon
PCV1J5R6MCL1GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 63V, 20% +Tol, 20% -Tol, 5.6uF, Surface Mount, 2626, CHIP, ROHS COMPLIANT
PackageRadial
Voltage63V
Capacitance5.6uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Nichicon PCV1J5R6MCL1GS technical specifications.
General
Capacitance
5.6uF
Package/Case
Radial
Diameter
6.3mm
ESR (Equivalent Series Resistance)
105mR
Height
6mm
Lead Pitch
2.1mm
Leakage Current
71uA
Length
6mm
Life (Hours)
3000Hour
Material
Polymer
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
PCV
Termination
SMD/SMT
Tolerance
20%
Voltage
63V
Voltage Rating
63V
DC Rated Voltage
63V
Weight
0.008818oz
Compliance
RoHS
Compliant
Datasheet
Nichicon PCV1J5R6MCL1GS Datasheet
Download the complete datasheet for Nichicon PCV1J5R6MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

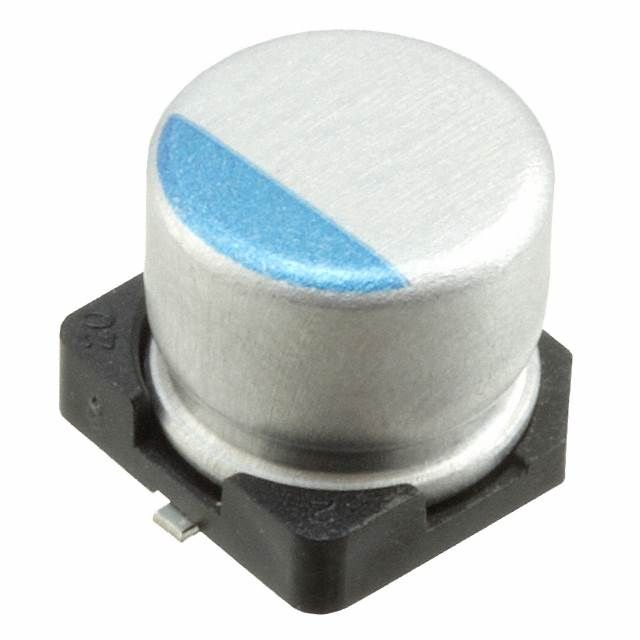

Product Images
