Nichicon
PCV1V820MCL2GS
Cap Aluminum Polymer 82uF 35VDC 20% (10 X 8mm) SMD 0.027 Ohm 3000mA 1000h 105°C Automotive T/R
PackageRadial
Capacitance82uF
Voltage Rating35V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Nichicon PCV1V820MCL2GS technical specifications.
General
Capacitance
82uF
Package/Case
Radial
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
27mR
Height - Seated (Max)
0.315inch
Leakage Current
574uA
Length
8mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
3A
RoHS Compliant
Yes
Series
CV
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCV1V820MCL2GS Datasheet
Download the complete datasheet for Nichicon PCV1V820MCL2GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

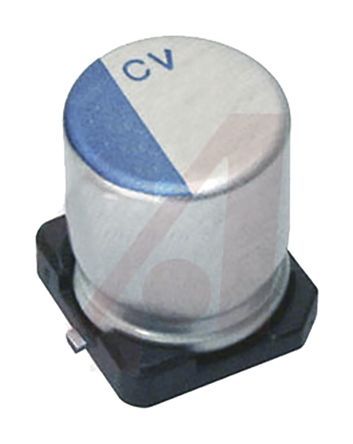

Product Images
