Nichicon
PCV2A6R8MCL1GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 100V, 20% +Tol, 20% -Tol, 6.8uF, Surface Mount, 3333, CHIP, ROHS COMPLIANT
PackageRadial
Capacitance6.8uF
Voltage Rating100V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Nichicon PCV2A6R8MCL1GS technical specifications.
General
Capacitance
6.8uF
Package/Case
Radial
ESR (Equivalent Series Resistance)
48mR
Height - Seated (Max)
0.394inch
Leakage Current
136uA
Length
10mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
1.5A
RoHS Compliant
Yes
Series
CV
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCV2A6R8MCL1GS Datasheet
Download the complete datasheet for Nichicon PCV2A6R8MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

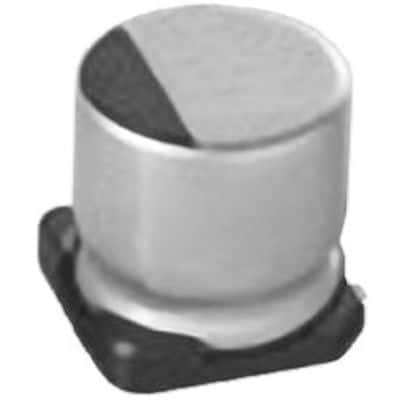

Product Images
