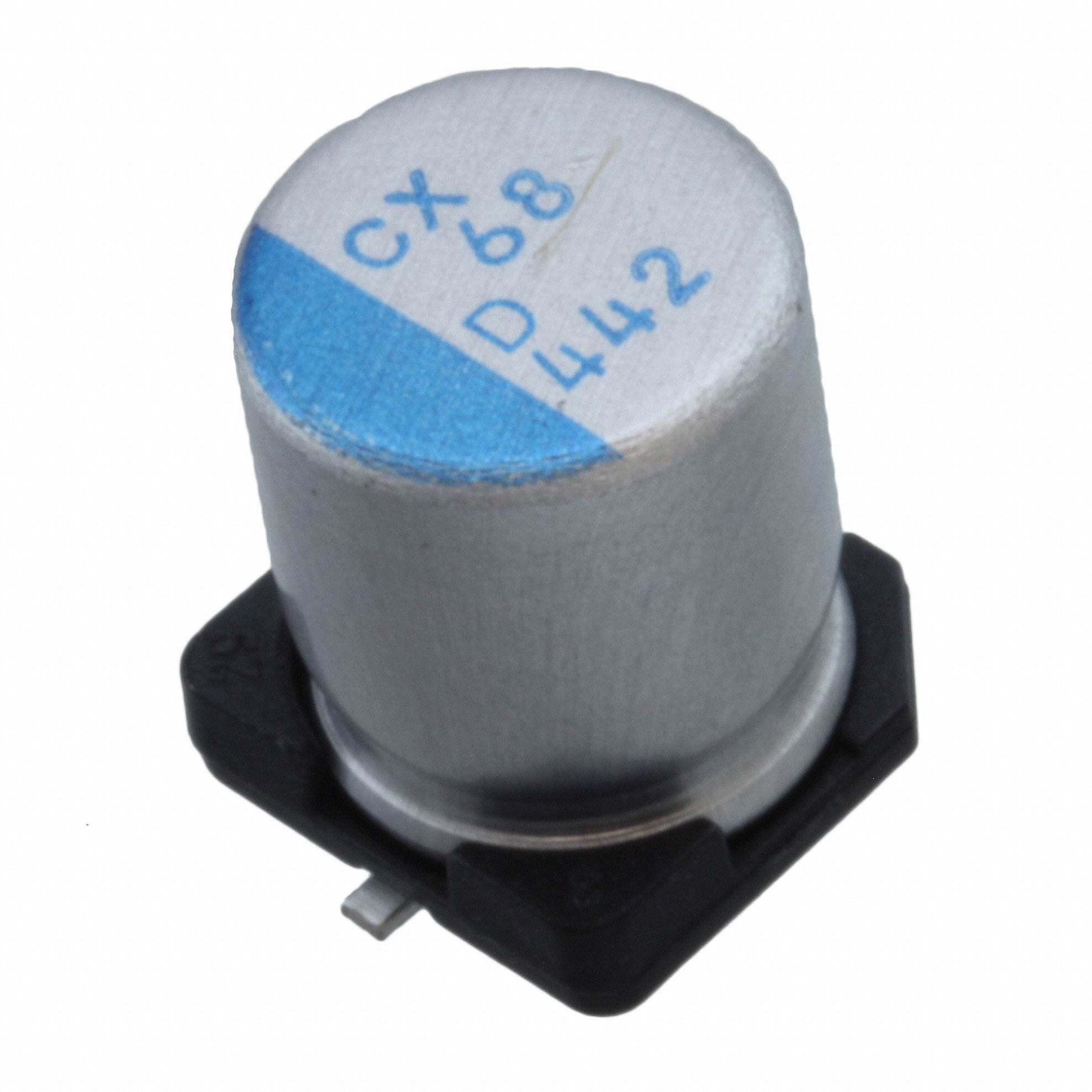

100µF, 16VDC aluminum polymer capacitor with 20% tolerance, featuring a low 33mΩ ESR and 460mA ripple current capability. Designed for surface mount applications, this component operates across a wide temperature range of -55°C to 125°C and offers a rated life of 2000 hours. Its compact 6.3mm diameter and 8mm height make it suitable for space-constrained designs.
PackageRadial
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon PCX1C101MCL1GS technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Diameter | 6.3mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 33mR |
| Height | 8mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.1mm |
| Leakage Current | 320uA |
| Length | 8mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Ripple Current | 460mA |
| RoHS Compliant | Yes |
| Series | PCX |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Weight | 0.01411oz |
Compliance
| RoHS | Compliant |
