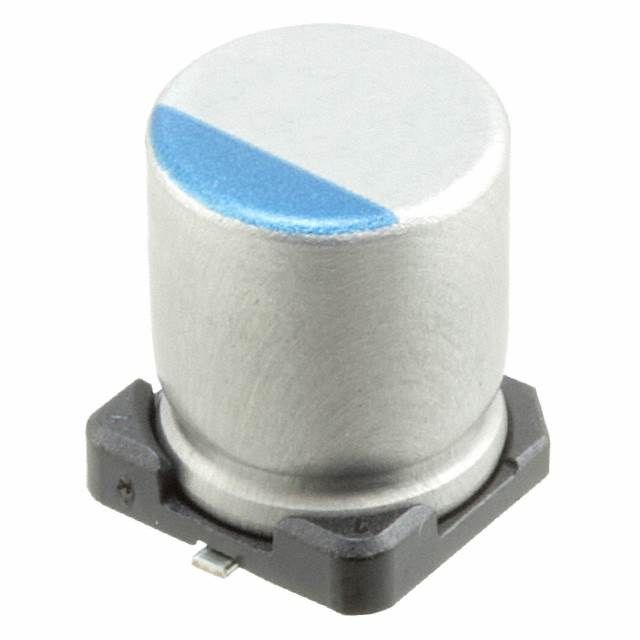

56µF, 25V polarized aluminum electrolytic capacitor with 20% tolerance. Features a low ESR of 35mΩ, dissipation factor of 0.12%, and leakage current of 280µA. Designed for surface mount applications with a radial package, 2.1mm lead pitch, and dimensions of 6.3mm diameter, 8mm height, and 8mm length. Rated for 2000 hours of life at 125°C maximum operating temperature, with a ripple current of 450mA. RoHS compliant and supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon PCX1E560MCS1GS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon PCX1E560MCS1GS technical specifications.
| Capacitance | 56uF |
| Package/Case | Radial |
| Diameter | 6.3mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 35mR |
| Height | 8mm |
| Lead Pitch | 2.1mm |
| Leakage Current | 280uA |
| Length | 8mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Ripple Current | 450mA |
| RoHS Compliant | Yes |
| Series | PCX |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Weight | 0.01411oz |
| RoHS | Compliant |
