Aluminum Polymer Capacitor, 27µF capacitance, 50V DC rated voltage, 20% tolerance. Features 35mΩ ESR, 2A ripple current, and 270µA leakage current. Operates from -55°C to 125°C with a 3000-hour lifespan. Surface mountable in an 8x12mm cylindrical package with a 3.2mm lead pitch.
PackageRadial
Voltage50V
Capacitance27uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon PCX1H270MCL1GS technical specifications.
General
| Capacitance | 27uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 35mR |
| Height | 12mm |
| Lead Diameter | 1.1mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.2mm |
| Leakage Current | 270uA |
| Length | 12mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2A |
| RoHS Compliant | Yes |
| Series | CX |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCX1H270MCL1GS Datasheet
Download the complete datasheet for Nichicon PCX1H270MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

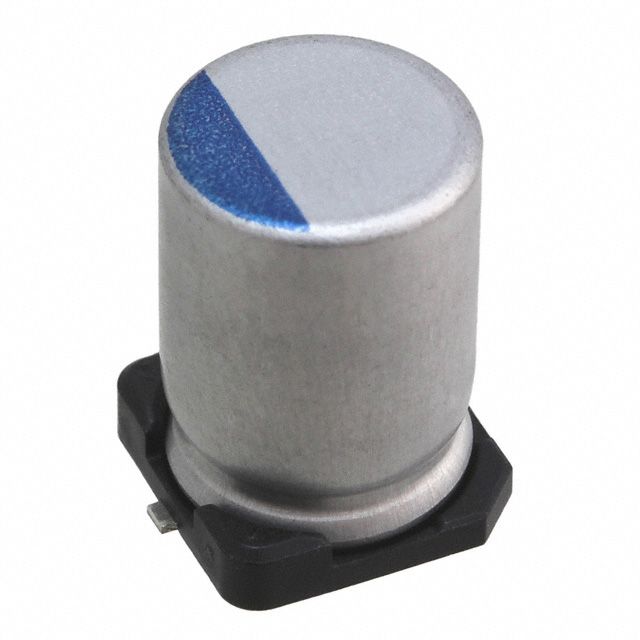

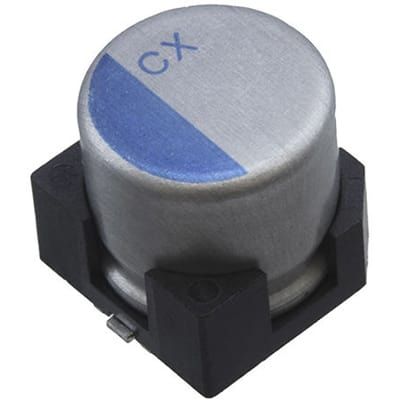

Product Images
