Nichicon
PLV1C221MDL1
Cap Aluminum Polymer 220uF 16VDC 20% (10 X 13mm) Radial 5mm 0.023 Ohm 2900mA 3000h 105°C Automotive Bulk
PackageRadial
Capacitance220uF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon PLV1C221MDL1 technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Diameter
10mm
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
23mR
Height - Seated (Max)
0.512inch
Lead Pitch
5mm
Leakage Current
704uA
Length
13mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
2.9A
RoHS Compliant
Yes
Series
LV
Termination
Radial
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon PLV1C221MDL1 Datasheet
Download the complete datasheet for Nichicon PLV1C221MDL1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

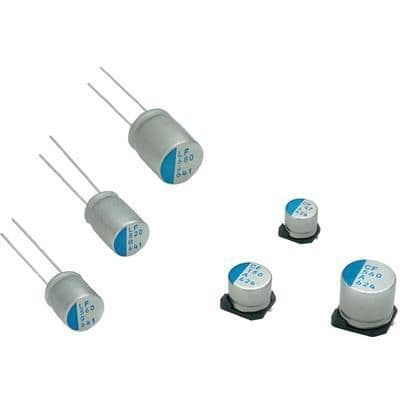

Product Images
