Nichicon
PLV1E151MDL1
Cap Aluminum Polymer 150uF 25VDC 20% (8 X 12mm) Radial 3.5mm 0.026 Ohm 2400mA 3000h 105°C Automotive Bulk
PackageRadial
Capacitance150uF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon PLV1E151MDL1 technical specifications.
General
Capacitance
150uF
Package/Case
Radial
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
26mR
Lead Pitch
3.5mm
Leakage Current
750uA
Length
12mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Ripple Current
2.4A
RoHS Compliant
Yes
Series
PLV
Termination
Radial
Tolerance
20%
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon PLV1E151MDL1 Datasheet
Download the complete datasheet for Nichicon PLV1E151MDL1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

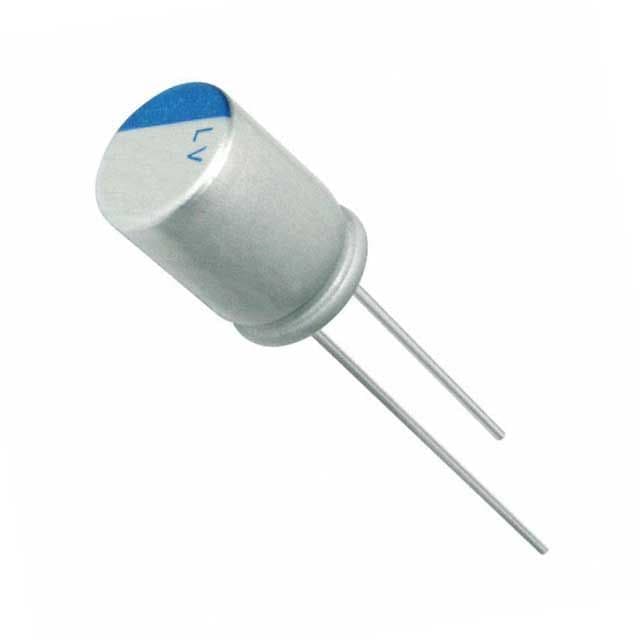

Product Images
