Nichicon
PLV1K220MDL1
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 80V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
PackageRadial
Capacitance22uF
Voltage Rating80V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon PLV1K220MDL1 technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
35mR
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
352uA
Length
13mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Ripple Current
2.3A
RoHS Compliant
Yes
Series
PLV
Termination
Radial
Tolerance
20%
Voltage Rating
80V
DC Rated Voltage
80V
Compliance
RoHS
Compliant
Datasheet
Nichicon PLV1K220MDL1 Datasheet
Download the complete datasheet for Nichicon PLV1K220MDL1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

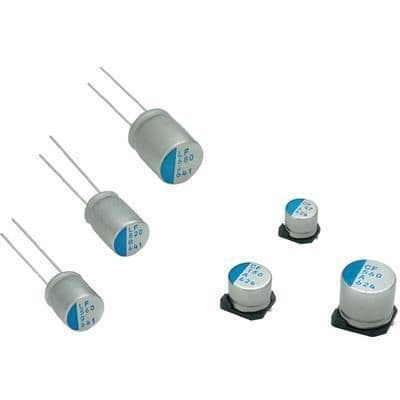

Product Images
