Nichicon
PLV1V151MDL1TD
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 150uF
PackageRadial
Capacitance150uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon PLV1V151MDL1TD technical specifications.
General
Capacitance
150uF
Package/Case
Radial
Diameter
10mm
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
26mR
Height
13mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
1.05mA
Length
13mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
500
Packaging
Tape and Reel
Ripple Current
2.7A
RoHS Compliant
Yes
Series
PLV
Termination
Radial
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon PLV1V151MDL1TD Datasheet
Download the complete datasheet for Nichicon PLV1V151MDL1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

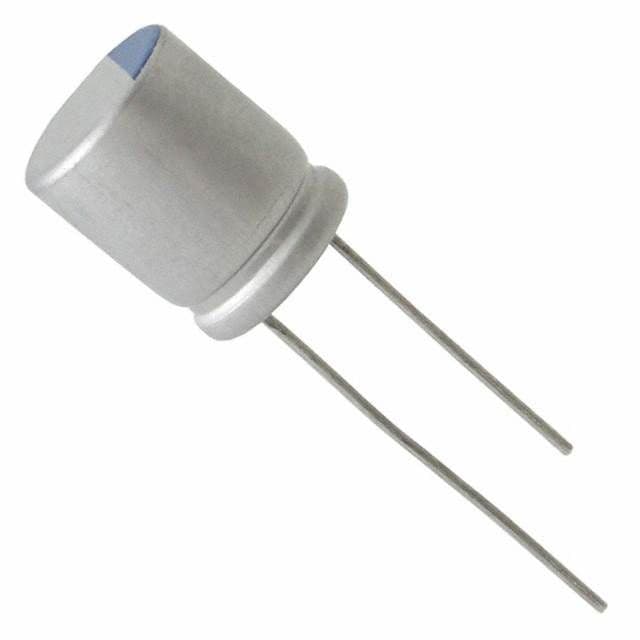

Product Images
