Aluminum Polymer Capacitor, 39µF capacitance, 35VDC voltage rating, and 20% tolerance. Features 31mΩ ESR, 2.1A ripple current, and 273µA leakage current. Radial package with 3.5mm lead pitch, 8mm diameter, and 12mm height. Operates from -55°C to 105°C with a 3000-hour life rating.
PackageRadial
Voltage35V
Capacitance39uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon PLV1V390MDL1 technical specifications.
General
Capacitance
39uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
31mR
Height
12mm
Lead Diameter
0.6mm
Lead Pitch
3.5mm
Leakage Current
273uA
Length
12mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
2.1A
RoHS Compliant
Yes
Series
LV
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon PLV1V390MDL1 Datasheet
Download the complete datasheet for Nichicon PLV1V390MDL1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

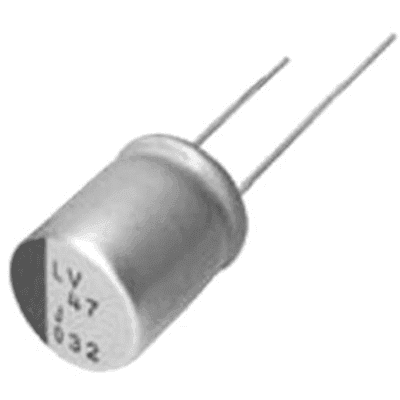

Product Images
