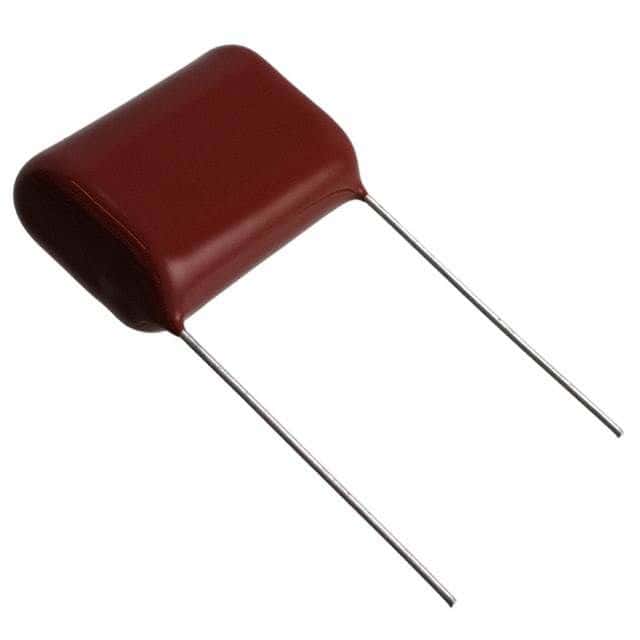

General purpose film capacitor with 6.8µF capacitance and 250V DC rating. Features PET dielectric, 10% tolerance, and 105°C maximum operating temperature. Designed for high-frequency applications with radial leads on a 27.5mm pitch. Through-hole mounting, RoHS compliant, and supplied in bulk packaging. Dimensions: 30.5mm length, 12.7mm depth, 21.8mm height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon QXK2E685KTP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Application(s) | HIGH FREQUENCY |
| Capacitance | 6.8uF |
| Package/Case | Radial |
| Depth | 12.7mm |
| Dielectric | PET |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | 3kR |
| Height | 21.8mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 27.5mm |
| Length | 30.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Radial |
| Package Quantity | 100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | XK |
| Termination | Radial |
| Tolerance | 10% |
| Type | General Purpose |
| Voltage | 250V |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 250V |
| RoHS | Compliant |
