Radial film capacitor, 0.1µF capacitance, 400V DC rated voltage, 200V AC rated voltage, 10% tolerance. PET dielectric construction, suitable for through-hole PCB mounting. Features a 12.5mm lead pitch, 0.6mm lead diameter, and operates from -40°C to 105°C. Dimensions are 15.5mm (length) x 7.3mm (width/depth) x 11.4mm (height).
PackageRadial
Voltage400V
Capacitance100nF
Voltage Rating400V
Quick Jump:
Technical Specifications
Nichicon QXK2G104KTPTZH technical specifications.
General
| Capacitance | 100nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 7.3mm |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Height | 11.4mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 12.5mm |
| Length | 15.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB, Radial |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | QXK-ZH |
| Termination | Radial |
| Thickness | 7.3mm |
| Tolerance | 10% |
| Voltage | 400V |
| Voltage Rating | 400V |
| Voltage Rating (AC) | 200V |
| DC Rated Voltage | 400V |
| Width | 7.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon QXK2G104KTPTZH Datasheet
Download the complete datasheet for Nichicon QXK2G104KTPTZH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

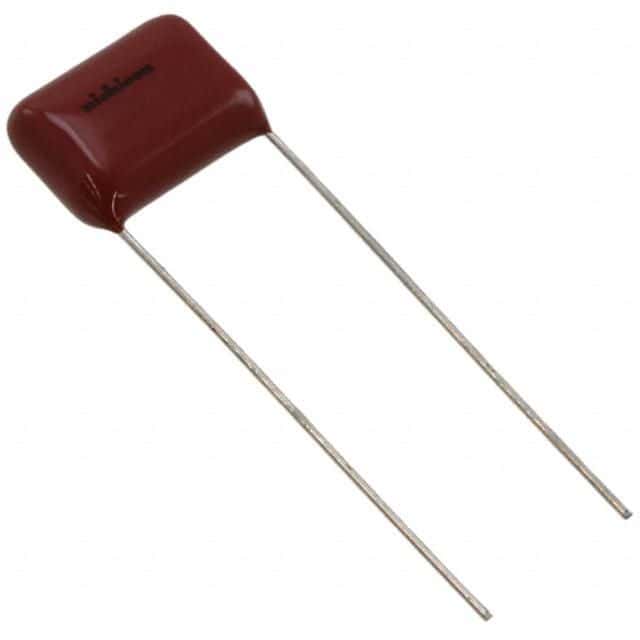

Product Images
