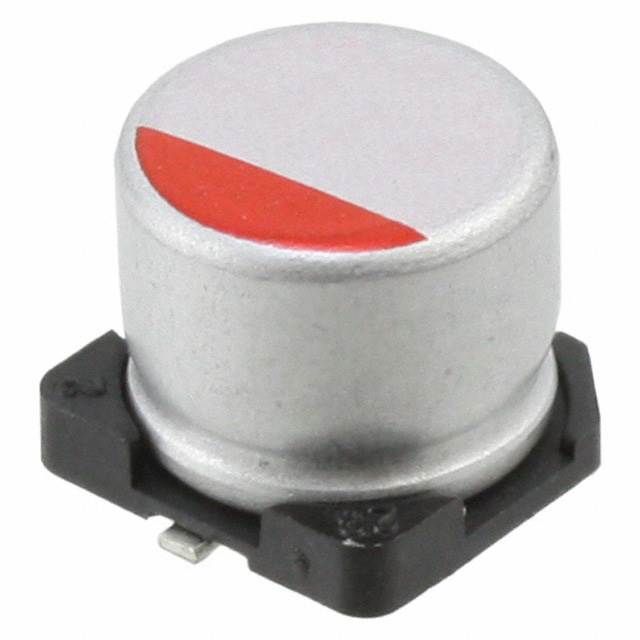

RHA0G561MCN1GS

Name: RHA0G561MCN1GS Nichicon
Brand: Nichicon
SKU: RHA0G561MCN1GS

Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 4V, 20% +Tol, 20% -Tol, 560uF, Surface Mount, 3333, HALOGEN FREE AND ROHS COMPLIANT

Capacitance560uF

Voltage Rating4V

MountingSurface Mount

Quick Jump:

Nichicon RHA0G561MCN1GS technical specifications.

Capacitance	560uF
Diameter	8mm
Dissipation Factor	0.12%
ESR (Equivalent Series Resistance)	8mR
Height	8.3mm
Height - Seated (Max)	0.315inch
Lead Free	Lead Free
Leakage Current	700uA
Length	6.7mm
Max Operating Temperature	105°C
Min Operating Temperature	2000°C
Mount	Surface Mount
Package Quantity	1
Packaging	Tape and Reel
Ripple Current	4.5A
RoHS Compliant	Yes
Series	Cut Tape (CT) Alternate Packaging
Termination	SMD/SMT
Tolerance	20%
Voltage Rating	4V
DC Rated Voltage	4V
Width	8.3mm

RoHS

Compliant
