Nichicon
RHS0J391MCN1GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 390uF, Surface Mount, 3333, HALOGEN FREE AND ROHS COMPLIANT
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 390uF, Surface Mount, 3333, HALOGEN FREE AND ROHS COMPLIANT
PackageRadial
Capacitance390uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Nichicon RHS0J391MCN1GS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Nichicon RHS0J391MCN1GS technical specifications.
General
| Capacitance | 390uF |
| Package/Case | Radial |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 18mR |
| Height | 8.3mm |
| Leakage Current | 737.1uA |
| Length | 6.7mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Ripple Current | 3.2A |
| RoHS Compliant | Yes |
| Series | FPCAP, RHS |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 8.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon RHS0J391MCN1GS Datasheet
Download the complete datasheet for Nichicon RHS0J391MCN1GS to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

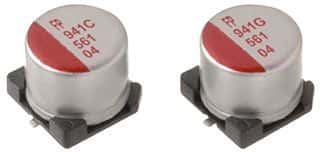

Product Images
