180µF, 16V polarized aluminum electrolytic capacitor featuring a solid polymer construction. Offers 12mΩ ESR and 5A ripple current capability, with a dissipation factor of 0.12%. Designed for through-hole mounting with radial leads, a 3.5mm lead pitch, and 8mm diameter. Operates across a -55°C to 105°C temperature range and boasts a 5000-hour life rating. RoHS and halogen-free compliant.
PackageRadial
Voltage16V
Capacitance180uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon RL81C181MDN1KX technical specifications.
General
| Capacitance | 180uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 12mR |
| Height | 8mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.5mm |
| Leakage Current | 576uA |
| Length | 8mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 5A |
| RoHS Compliant | Yes |
| Series | FPCAP, RL8 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon RL81C181MDN1KX Datasheet
Download the complete datasheet for Nichicon RL81C181MDN1KX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

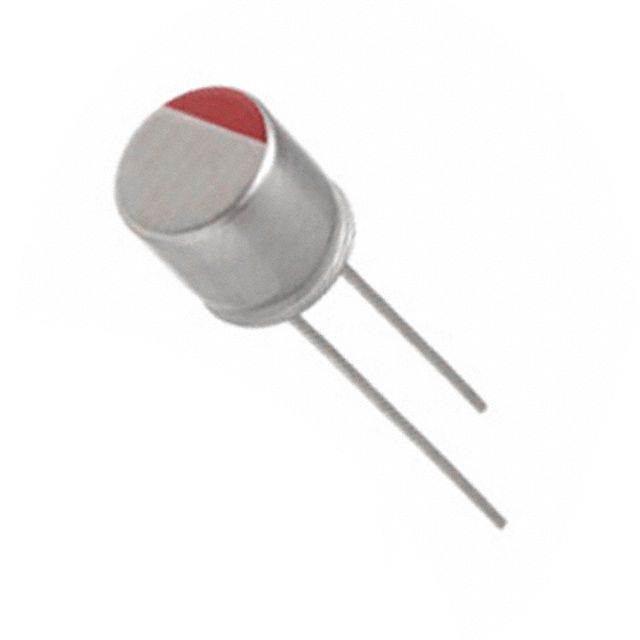

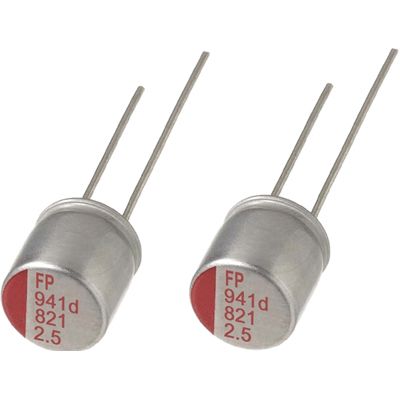

Product Images
