Aluminum Polymer Capacitor, 560µF capacitance, 4V DC rated voltage, and 20% tolerance. Features low 13mΩ ESR and 4.5A ripple current capability. Operates from -55°C to 105°C with a 2000-hour life expectancy. Surface mountable in an 8 x 11.7mm cylindrical package.
PackageRadial
Voltage4V
Capacitance560uF
Voltage Rating4V
Quick Jump:
Technical Specifications
Nichicon RPS0G561MCN1GS technical specifications.
General
| Capacitance | 560uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 13mR |
| Height | 11.7mm |
| Height - Seated (Max) | 0.461inch |
| Lead Pitch | 1.1mm |
| Leakage Current | 448uA |
| Length | 11.7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 4.5A |
| RoHS Compliant | Yes |
| Series | PS |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 4V |
| Voltage Rating | 4V |
| DC Rated Voltage | 4V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon RPS0G561MCN1GS Datasheet
Download the complete datasheet for Nichicon RPS0G561MCN1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

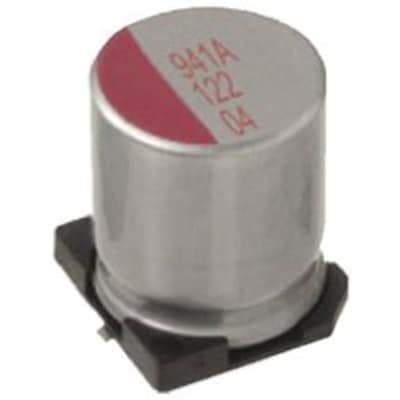

Product Images
