Surface mount aluminum polymer capacitor with 560µF capacitance and 6.3VDC voltage rating. Features 14mΩ ESR, 4.4A ripple current, and a 20% tolerance. Operates from -55°C to 105°C with a 2000-hour lifespan. Cylindrical construction with 8mm diameter and 11.7mm height, packaged on tape and reel.
PackageRadial
Voltage6.3V
Capacitance560uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Nichicon RPS0J561MCN1GS technical specifications.
General
| Capacitance | 560uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 0.15% |
| ESR (Equivalent Series Resistance) | 14mR |
| Height | 11.7mm |
| Height - Seated (Max) | 0.461inch |
| Lead Pitch | 1.1mm |
| Leakage Current | 706uA |
| Length | 11.7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 4.4A |
| RoHS Compliant | Yes |
| Series | PS |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon RPS0J561MCN1GS Datasheet
Download the complete datasheet for Nichicon RPS0J561MCN1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

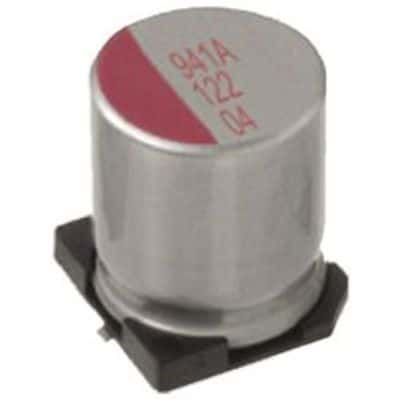

Product Images
