120µF, 10V polarized aluminum electrolytic capacitor featuring a solid polymer construction. Surface mountable with a 3333 package, it offers 20% capacitance tolerance and a low ESR of 30mΩ at 105°C. Operating across a wide temperature range of -55°C to 105°C, this capacitor has a leakage current of 240µA and a ripple current rating of 2.6A. HALOGEN FREE and RoHS compliant.
PackageRadial
Voltage10V
Capacitance120uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon RPS1A121MCN1GS technical specifications.
General
| Capacitance | 120uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 30mR |
| Height | 6.7mm |
| Lead Pitch | 1.1mm |
| Leakage Current | 240uA |
| Length | 6.7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 2.6A |
| RoHS Compliant | Yes |
| Series | PS |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon RPS1A121MCN1GS Datasheet
Download the complete datasheet for Nichicon RPS1A121MCN1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

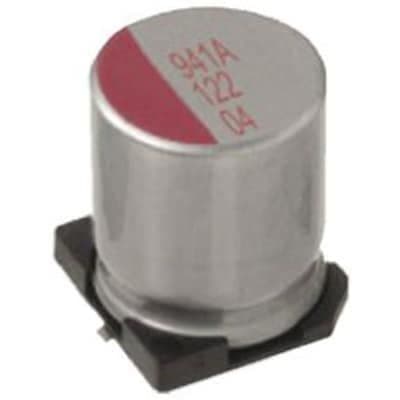

Product Images
