Aluminum Polymer Capacitor, 270µF capacitance, 10V DC rated voltage, and 20% tolerance. Features 25mΩ ESR, 3.5A ripple current, and a maximum operating temperature of 105°C. Cylindrical construction with 10mm diameter and 7.7mm height, designed for surface mount applications. Rated for 2000 hours of operation and supplied in tape and reel packaging.
PackageRadial
Voltage10V
Capacitance270uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon RPS1A271MCN1GS technical specifications.
General
| Capacitance | 270uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 25mR |
| Height | 7.7mm |
| Lead Pitch | 1.1mm |
| Leakage Current | 540uA |
| Length | 7.7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 3.5A |
| RoHS Compliant | Yes |
| Series | PS |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon RPS1A271MCN1GS Datasheet
Download the complete datasheet for Nichicon RPS1A271MCN1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

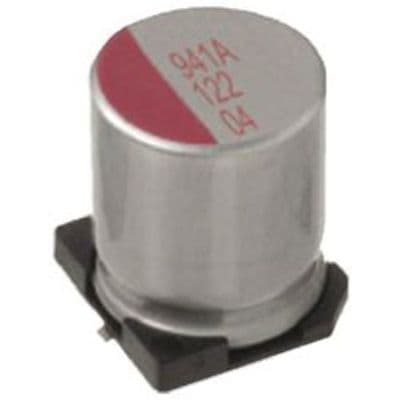

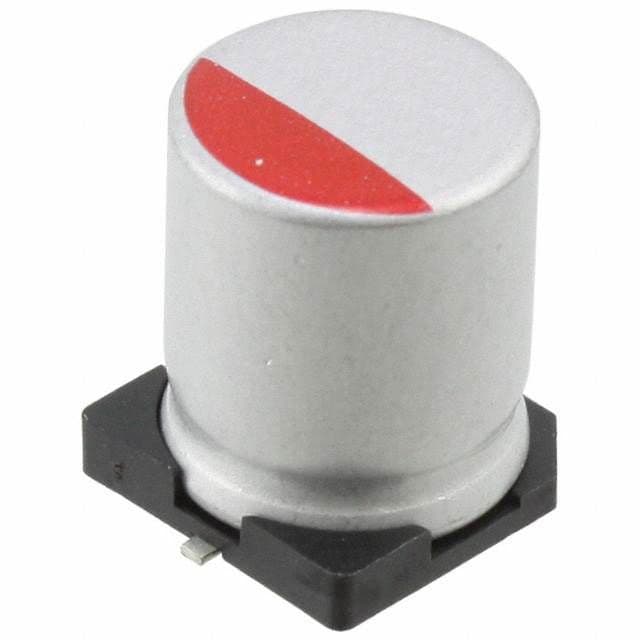

Product Images
