16V, 39µF polarized aluminum electrolytic capacitor with 20% tolerance. Features a 45mΩ ESR, 2A ripple current, and 125µA leakage current. Operates from -55°C to 105°C with a 2000-hour life rating. Surface mountable with a 0.9mm lead pitch and 6.3mm diameter. HALOGEN FREE AND ROHS COMPLIANT.
PackageRadial
Voltage16V
Capacitance39uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon RPS1C390MCN1GS technical specifications.
General
| Capacitance | 39uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 45mR |
| Height | 5.7mm |
| Height - Seated (Max) | 0.224inch |
| Lead Pitch | 0.9mm |
| Leakage Current | 125uA |
| Length | 5.7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 2A |
| RoHS Compliant | Yes |
| Series | PS |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon RPS1C390MCN1GS Datasheet
Download the complete datasheet for Nichicon RPS1C390MCN1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

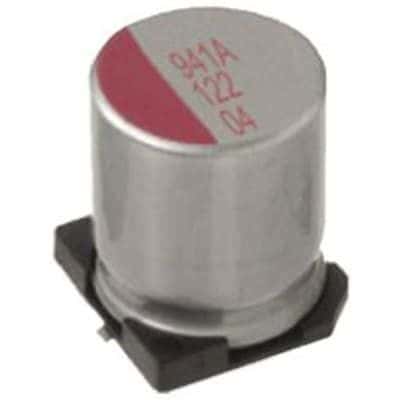

Product Images
