Aluminum Polymer Capacitor, 56µF capacitance, 16V DC rated voltage, 20% tolerance. Features 40mΩ ESR, 2.3A ripple current, and 105°C maximum operating temperature. Surface mount radial construction with 8mm diameter and 6.7mm height. 2000-hour life expectancy at rated conditions.
PackageRadial
Voltage16V
Capacitance56uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon RPS1C560MCN1GS technical specifications.
General
Capacitance
56uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dissipation Factor
0.1%
ESR (Equivalent Series Resistance)
40mR
Height
6.7mm
Lead Pitch
1.1mm
Leakage Current
179uA
Length
6.7mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
2.3A
RoHS Compliant
Yes
Series
PS
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon RPS1C560MCN1GS Datasheet
Download the complete datasheet for Nichicon RPS1C560MCN1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

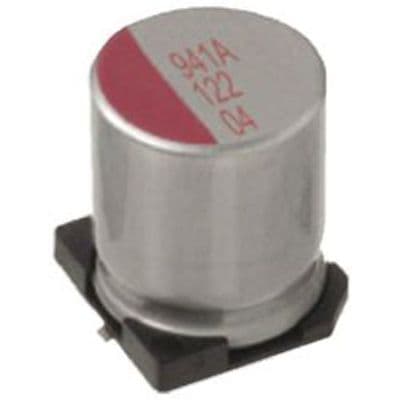

Product Images
