Technical Specifications
Nichicon RR71A681MDN1 technical specifications.
General
| Capacitance | 680uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 7mR |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 1.36mA |
| Length | 12.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 600 |
| Packaging | Bulk |
| Ripple Current | 6.1A |
| Ripple Current (AC) | 6.1A |
| RoHS Compliant | Yes |
| Series | FPCAP, RR7 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Not Compliant |
Datasheet
Nichicon RR71A681MDN1 Datasheet
Download the complete datasheet for Nichicon RR71A681MDN1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

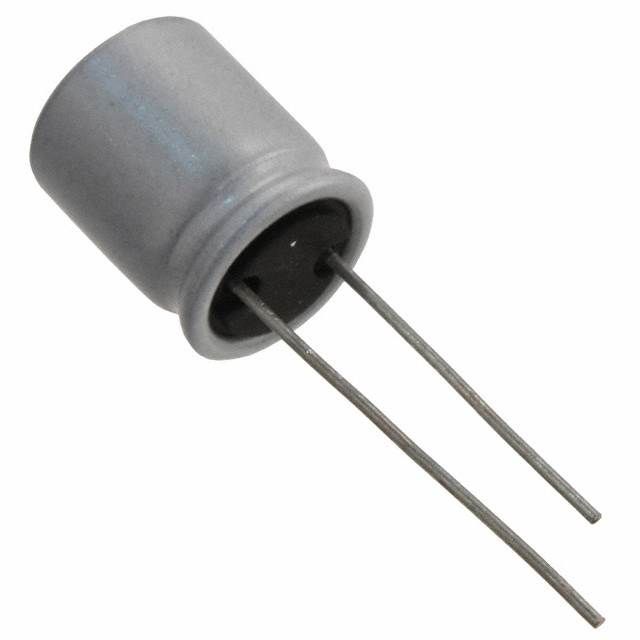

Product Images
