Technical Specifications
Nichicon RR71C151MDN1 technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dissipation Factor | 0.06% |
| ESR (Equivalent Series Resistance) | 7mR |
| Height | 12.5mm |
| Height - Seated (Max) | 0.394inch |
| Lead Pitch | 0.197inch |
| Leakage Current | 120uA |
| Length | 12.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | 2000°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ripple Current | 6.1A |
| RoHS Compliant | Yes |
| Series | Bulk |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Not Compliant |
Datasheet
Nichicon RR71C151MDN1 Datasheet
Download the complete datasheet for Nichicon RR71C151MDN1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

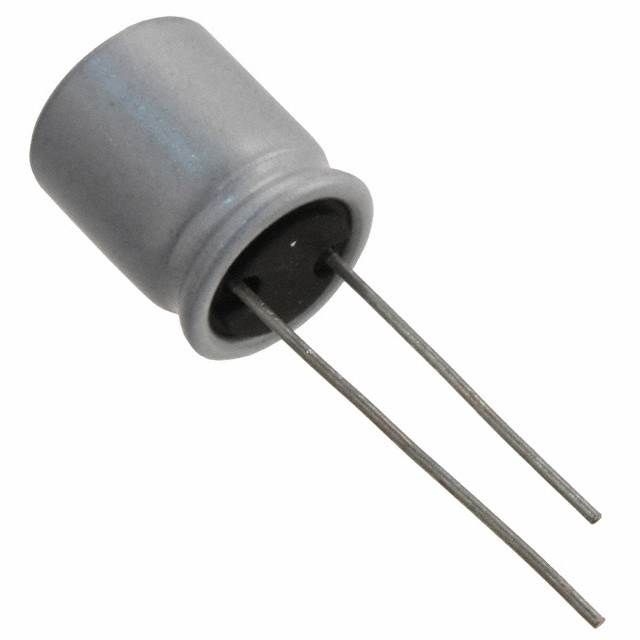

Product Images
