Radial aluminum electrolytic capacitor with 560µF capacitance and 6.3V DC rated voltage. Features 20% tolerance, 8mΩ ESR, and 882µA leakage current. Operates from -55°C to 105°C with a 5000-hour life expectancy and 5A ripple current capability. Through-hole mounting with a 2.5mm lead pitch and 0.6mm lead diameter. RoHS compliant and supplied in tape and reel packaging.
PackageRadial
Voltage6.3V
Capacitance560uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Nichicon RS80J561MDN1JT technical specifications.
General
| Capacitance | 560uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 8mR |
| Height | 8mm |
| Lead Diameter | 0.6mm |
| Lead Pitch | 2.5mm |
| Leakage Current | 882uA |
| Length | 8mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 5A |
| RoHS Compliant | Yes |
| Series | FPCAP, RS8 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon RS80J561MDN1JT Datasheet
Download the complete datasheet for Nichicon RS80J561MDN1JT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

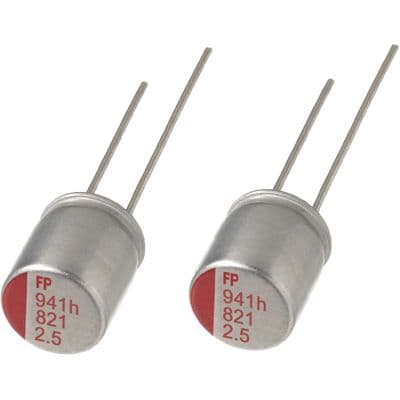

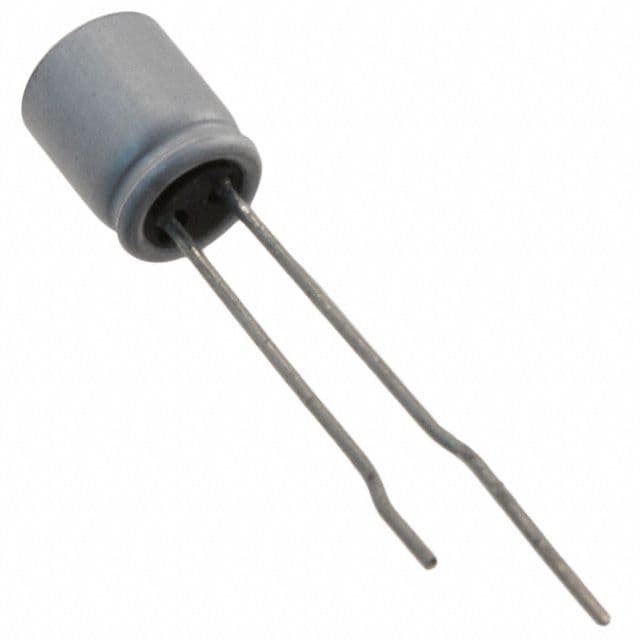

Product Images
