This 10mF aluminum electrolytic capacitor is rated for 6.3V with a tolerance of 20%. It features an axial package type and is designed for through hole mounting. The capacitor operates within a temperature range of -40°C to 85°C and is compliant with RoHS regulations.
PackageAxial
Capacitance10mF
Voltage Rating6.3V
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Nichicon TVX0J103MCD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Nichicon TVX0J103MCD technical specifications.
General
| Capacitance | 10mF |
| Package/Case | Axial |
| Length | 1.713inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Ripple Current | 2.26A |
| RoHS Compliant | Yes |
| Series | VX |
| Termination | Axial |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon TVX0J103MCD Datasheet
Download the complete datasheet for Nichicon TVX0J103MCD to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

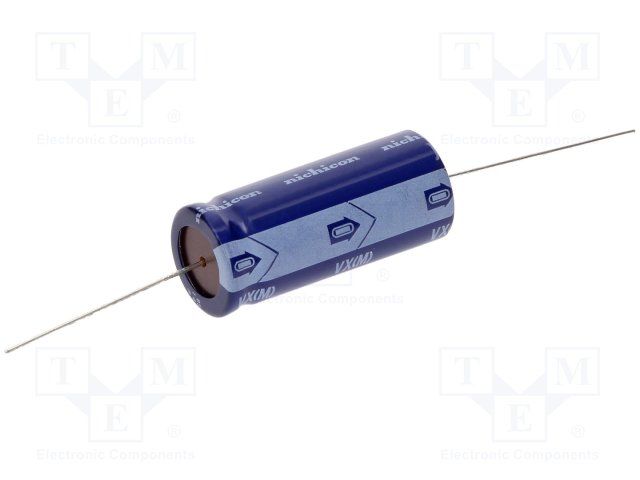

Product Images
