Aluminum electrolytic capacitor with 470µF capacitance and 10V DC rated voltage. Features 20% tolerance, 350mA ripple current, and a dissipation factor of 0.2%. Axial package measures 8mm diameter by 16mm height, with 0.6mm lead diameter and 35mm lead length. Designed for through-hole mounting, operating from -40°C to 85°C with a 2000-hour life expectancy. RoHS compliant.
PackageAxial
Capacitance470uF
Voltage Rating10V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon TVX1A471MAD technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Axial |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.2% |
| Height | 16mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Length | 35mm |
| Leakage Current | 4uA |
| Length | 16mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 350mA |
| Ripple Current (AC) | 350mA |
| RoHS Compliant | Yes |
| Series | VX |
| Termination | Axial |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon TVX1A471MAD Datasheet
Download the complete datasheet for Nichicon TVX1A471MAD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

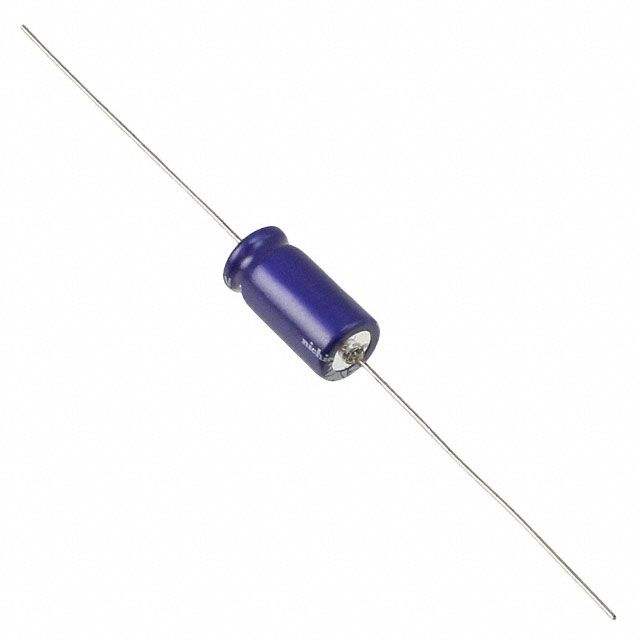

Product Images
