Aluminum electrolytic capacitor, 3300µF capacitance, 16V DC rated voltage, and 20% tolerance. Features a radial package with a 7.5mm lead pitch, 16mm diameter, and 31.5mm height. Offers a ripple current of 2.71A, impedance of 20mΩ, and a rated life of 10,000 hours at 125°C. Operating temperature range is -40°C to 125°C.
PackageRadial
Voltage16V
Capacitance3.3mF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UBT1C332MHD technical specifications.
General
| Capacitance | 3.3mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dissipation Factor | 0.16% |
| Height | 31.5mm |
| Height - Seated (Max) | 1.319inch |
| Impedance | 20mR |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Leakage Current | 4uA |
| Length | 31.5mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Ripple Current | 2.71A |
| RoHS Compliant | Yes |
| Series | BT |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UBT1C332MHD Datasheet
Download the complete datasheet for Nichicon UBT1C332MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

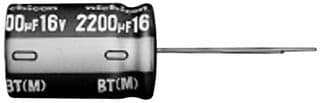

Product Images
