Aluminum electrolytic capacitor, 4700µF capacitance, 16V DC rated voltage, 20% tolerance. Features a radial package with 7.5mm lead pitch and 0.8mm lead diameter. Offers a ripple current of 3.27A, low leakage current of 4µA, and impedance of 18mR. Designed for through-hole mounting with a long operational life of 10,000 hours at 125°C.
PackageRadial
Voltage16V
Capacitance4.7mF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UBT1C472MHD technical specifications.
General
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dissipation Factor | 0.16% |
| Height | 31.5mm |
| Height - Seated (Max) | 1.319inch |
| Impedance | 18mR |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Leakage Current | 4uA |
| Length | 31.5mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Ripple Current | 3.27A |
| RoHS Compliant | Yes |
| Series | BT |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UBT1C472MHD Datasheet
Download the complete datasheet for Nichicon UBT1C472MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

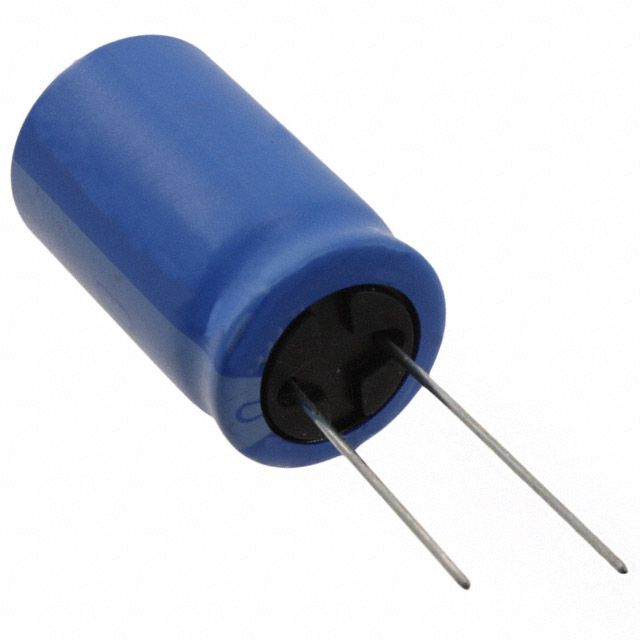

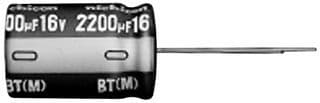

Product Images
