High-performance aluminum electrolytic capacitor, 1000µF capacitance, 50V DC rated voltage, and 20% tolerance. Features a radial package with 7.5mm lead pitch, 16mm diameter, and 31.5mm height. Offers a low impedance of 31mΩ, ripple current capability of 2.43A, and a long life of 10,000 hours at 125°C. Designed for through-hole PCB mounting, this RoHS compliant component operates from -40°C to 125°C.
PackageRadial
Voltage50V
Capacitance1mF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon UBT1H102MHD technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dissipation Factor | 0.1% |
| Height | 31.5mm |
| Height - Seated (Max) | 1.319inch |
| Impedance | 31mR |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Leakage Current | 4uA |
| Length | 31.5mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 2.43A |
| RoHS Compliant | Yes |
| Series | BT |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UBT1H102MHD Datasheet
Download the complete datasheet for Nichicon UBT1H102MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

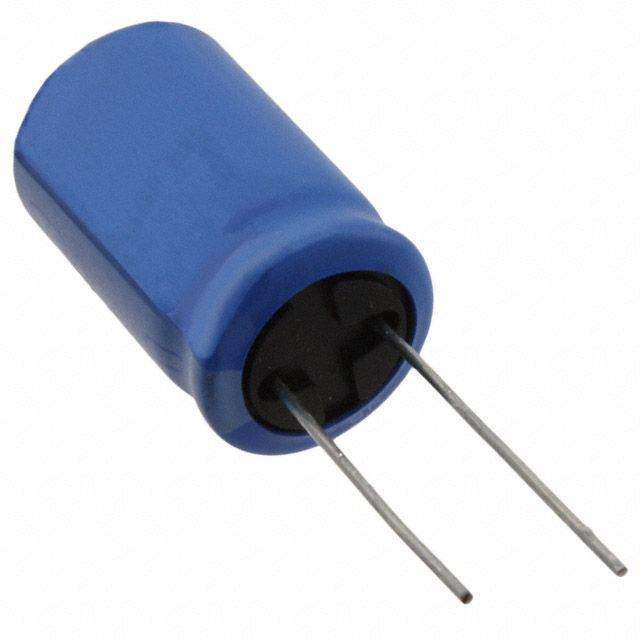

Product Images
