Automotive-grade aluminum electrolytic capacitor, 100µF capacitance, 35V DC rated voltage, with a ±20% tolerance. Features a 1000-hour life at 150°C maximum operating temperature, 400mA ripple current, and 4µA leakage current. Radial package with 5mm lead pitch, 0.6mm lead diameter, and dimensions of 10mm diameter by 20mm height. Through-hole mounting, bulk packaging, and RoHS compliant.
PackageRadial
Voltage35V
Capacitance100uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UBX1V101MPL technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dissipation Factor
0.12%
Height
20mm
Height - Seated (Max)
0.846inch
Lead Diameter
0.6mm
Lead Pitch
5mm
Leakage Current
4uA
Length
20mm
Life (Hours)
1000Hour
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
400mA
RoHS Compliant
Yes
Series
UBX
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UBX1V101MPL Datasheet
Download the complete datasheet for Nichicon UBX1V101MPL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

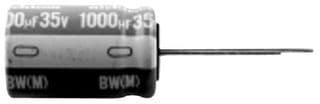

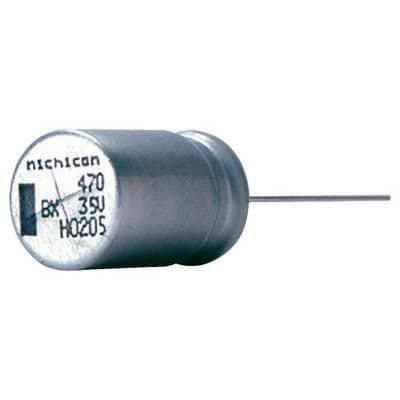

Product Images
