Aluminum electrolytic capacitor, 1000µF capacitance, 35V voltage rating, and 20% tolerance. Features a radial package with 7.5mm lead pitch, 18mm diameter, and 40mm height. Offers 1.3A ripple current, 1.05mA leakage current, and a 2000-hour life at 105°C. Operates from -55°C to 150°C and is RoHS compliant.
PackageRadial
Voltage35V
Capacitance1mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UBX1V102MHL technical specifications.
General
Capacitance
1mF
Package/Case
Radial
Construction
RADIAL
Diameter
18mm
Height
40mm
Height - Seated (Max)
1.634inch
Lead Diameter
0.8mm
Lead Pitch
7.5mm
Leakage Current
1.05mA
Length
40mm
Life (Hours)
2000Hour
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
1.3A
RoHS Compliant
Yes
Series
BX
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UBX1V102MHL Datasheet
Download the complete datasheet for Nichicon UBX1V102MHL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

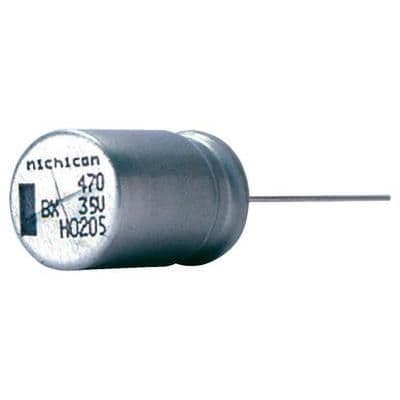

Product Images
