Aluminum electrolytic capacitor with 68µF capacitance and 100V DC rated voltage. Features 20% tolerance, 760mA ripple current, and a low leakage current of 4µA. Designed for through-hole mounting with a radial package, 5mm lead pitch, and 0.6mm lead diameter. Operates across a wide temperature range from -55°C to 150°C, with a rated life of 1000 hours at 105°C. Dimensions are 12.5mm diameter and 20mm height.
PackageRadial
Voltage100V
Capacitance68uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon UBX2A680MHL technical specifications.
General
| Capacitance | 68uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dissipation Factor | 0.08% |
| Height | 20mm |
| Height - Seated (Max) | 0.846inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Leakage Current | 4uA |
| Length | 20mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 760mA |
| RoHS Compliant | Yes |
| Series | UBX |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UBX2A680MHL Datasheet
Download the complete datasheet for Nichicon UBX2A680MHL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

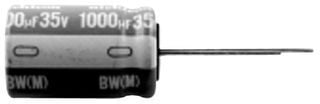

Product Images
