Aluminum electrolytic capacitor with 47uF capacitance and 450V DC rated voltage. Features 20% tolerance, 900mA ripple current, and 12000-hour life at 105°C. Radial package with 7.5mm lead pitch, 18mm diameter, and 31.5mm height. Through-hole mounting for PCB applications.
PackageRadial
Voltage450V
Capacitance47uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Nichicon UCA2W470MHD technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dissipation Factor | 0.2% |
| Features | General Purpose |
| Height | 31.5mm |
| Height - Seated (Max) | 1.299inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Leakage Current | 946uA |
| Length | 31.5mm |
| Life (Hours) | 12000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 900mA |
| RoHS Compliant | Yes |
| Series | CA |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCA2W470MHD Datasheet
Download the complete datasheet for Nichicon UCA2W470MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

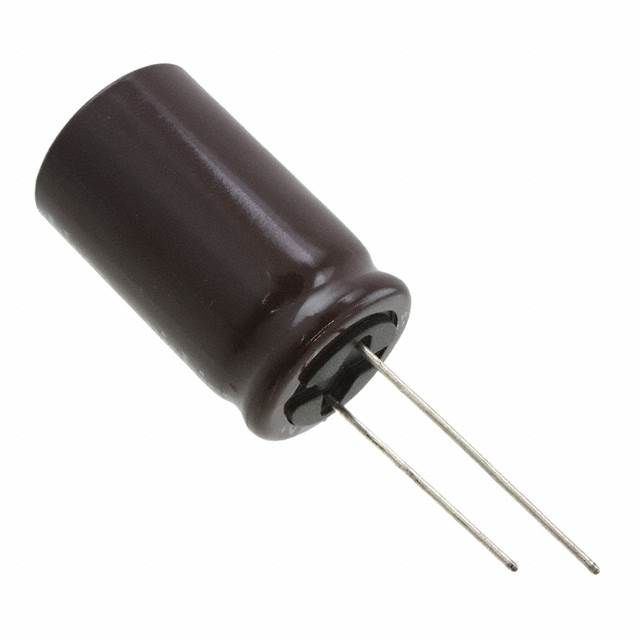

Product Images
