Standard aluminum electrolytic capacitor, 150µF capacitance, 10V DC rated voltage, with a 20% tolerance. Features a 240mA ripple current capability and a low impedance of 360mΩ. Designed for surface mount applications with a 6.3mm diameter and 5.8mm height, operating across a -55°C to 105°C temperature range. Offers 2000 hours of life at rated conditions and is RoHS compliant.
PackageRadial
Voltage10V
Capacitance150uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UCD1A151MCL1GS technical specifications.
General
Capacitance
150uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dissipation Factor
0.19%
Features
General Purpose
Height
5.8mm
Height - Seated (Max)
0.24inch
Impedance
360mR
Lead Free
Lead Free
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
240mA
RoHS Compliant
Yes
Series
CD
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCD1A151MCL1GS Datasheet
Download the complete datasheet for Nichicon UCD1A151MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

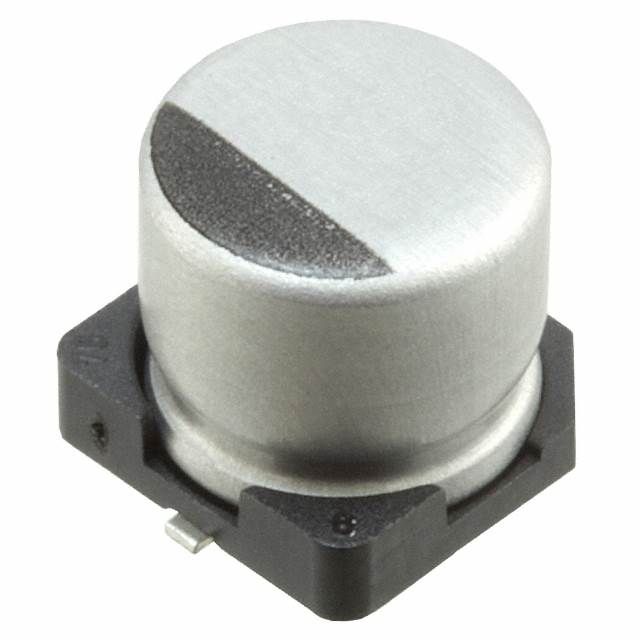

Product Images
