Nichicon
UCD1C102MNL1GS
Cap Aluminum Lytic 1000uF 16V 20% (10 X 13.5mm) SMD 950mA 5000h 105°C Automotive T/R
PackageRadial
Capacitance1mF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UCD1C102MNL1GS technical specifications.
General
Capacitance
1mF
Package/Case
Radial
Construction
Cylindrical
Diameter
10mm
Dissipation Factor
0.16%
Height
13.5mm
Impedance
80mR
Leakage Current
3uA
Length
13.5mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
400
Packaging
Tape and Reel
Ratings
AEC-Q200
Ripple Current
950mA
RoHS Compliant
Yes
Series
UCD
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCD1C102MNL1GS Datasheet
Download the complete datasheet for Nichicon UCD1C102MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

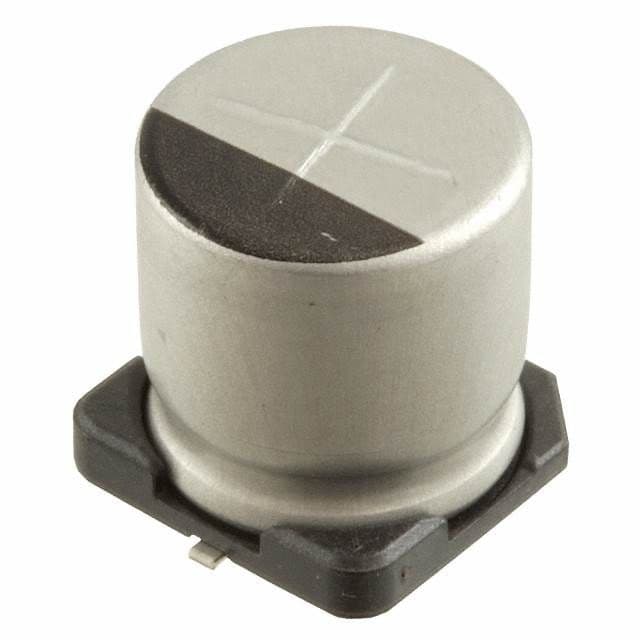

Product Images
