Aluminum electrolytic capacitor, 470µF capacitance, 16V DC rated voltage, 20% tolerance. Features a 600mA ripple current, 160mΩ impedance, and 3µA leakage current. Operates from -55°C to 105°C with a 5000-hour life expectancy. Surface mountable with SMD/SMT termination, packaged in tape and reel.
PackageRadial
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UCD1C471MNL1GS technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dissipation Factor
0.16%
Features
General Purpose
Height
10mm
Height - Seated (Max)
0.413inch
Impedance
160mR
Leakage Current
3uA
Length
10mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
600mA
RoHS Compliant
Yes
Series
UCD
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCD1C471MNL1GS Datasheet
Download the complete datasheet for Nichicon UCD1C471MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

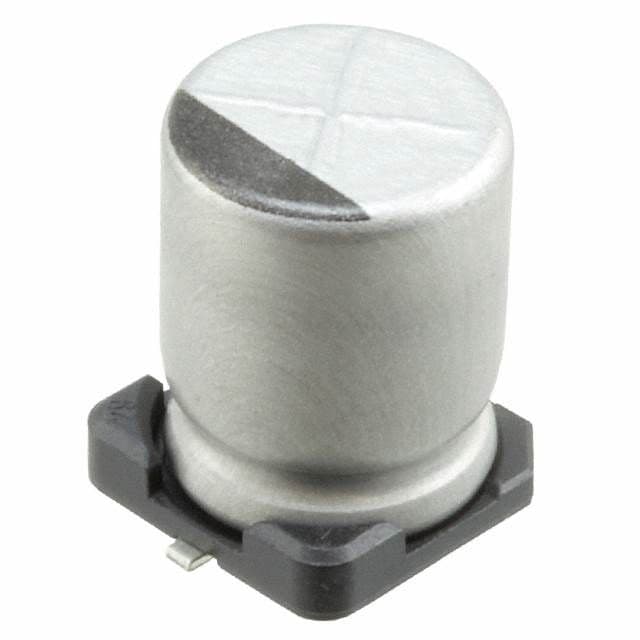

Product Images
