Aluminum electrolytic capacitor, 33µF capacitance, 25V DC rated voltage, 20% tolerance. Features a 160mA ripple current, 700mΩ impedance, and 8.25µA leakage current. Operates from -55°C to 105°C with a 2000-hour life at rated conditions. Surface mount radial package, 5mm x 5.8mm dimensions, AEC-Q200 qualified, and RoHS compliant.
PackageRadial
Capacitance33uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UCD1E330MCL6GS technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Dissipation Factor | 0.14% |
| Features | General Purpose |
| Height - Seated (Max) | 0.24inch |
| Impedance | 700mR |
| Leakage Current | 8.25uA |
| Length | 5.8mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Ripple Current | 160mA |
| RoHS Compliant | Yes |
| Series | CD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCD1E330MCL6GS Datasheet
Download the complete datasheet for Nichicon UCD1E330MCL6GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

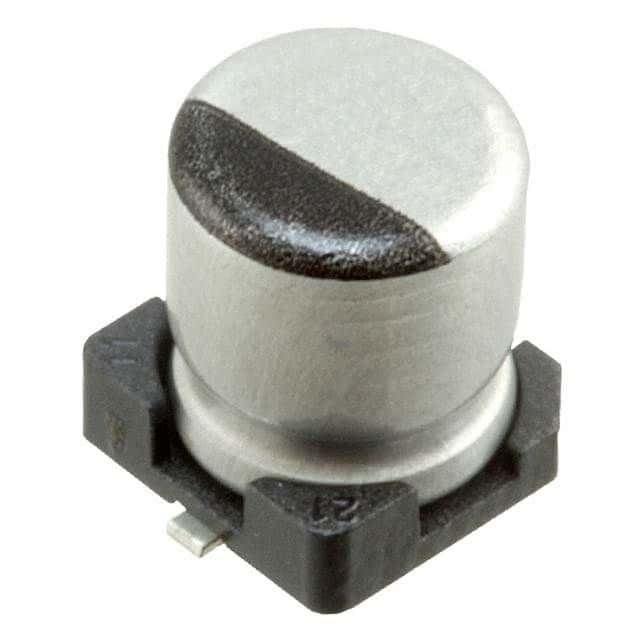

Product Images
