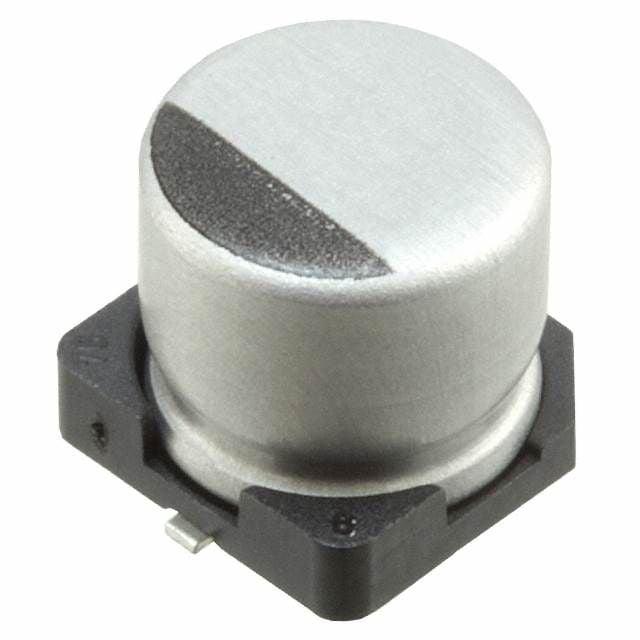

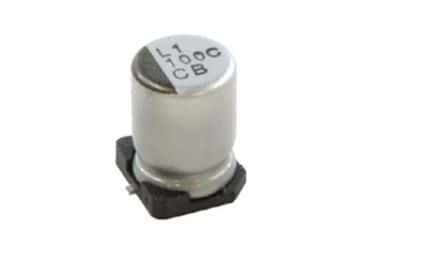

This polarized aluminum electrolytic capacitor offers 22µF capacitance with a 50V DC rating and ±20% tolerance. Designed for surface mount applications, it features a cylindrical construction with a 6.3mm diameter, 5.8mm height, and 5.8mm length. Key specifications include a low dissipation factor of 0.1%, 860mΩ impedance, 170mA ripple current, and a leakage current of 3µA. Operating across a wide temperature range from -55°C to 105°C, this general-purpose capacitor is RoHS compliant and rated for 2000 hours of life.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon UCD1H220MCL1GS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon UCD1H220MCL1GS technical specifications.
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 0.1% |
| Features | General Purpose |
| Height | 5.8mm |
| Impedance | 860mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 5.8mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 170mA |
| Ripple Current (AC) | 170mA |
| RoHS Compliant | Yes |
| Series | CD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| RoHS | Compliant |
