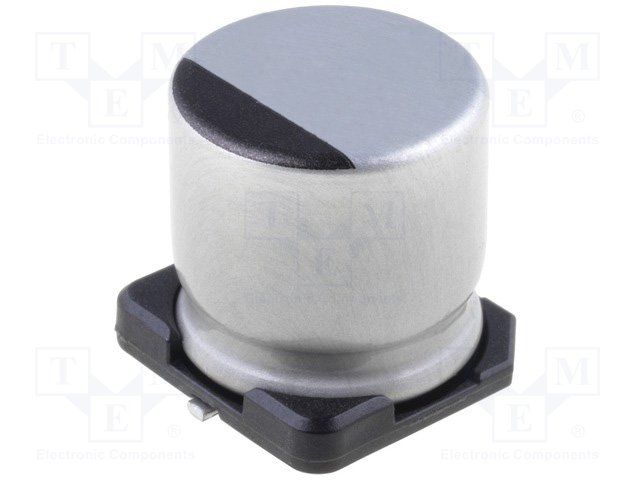

The Nichicon UCD1H391MNQ1MS is a 390uF, 50V, 20% aluminum electrolytic capacitor available in a radial package. It has a maximum operating temperature of 105°C and a minimum operating temperature of -55°C. This capacitor is rated for 5000 hours of life and has a leakage current of 352.5uA. It is also RoHS compliant and meets AEC-Q200 ratings.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon UCD1H391MNQ1MS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 390uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 12.5mm |
| Dissipation Factor | 0.1% |
| Height | 13.5mm |
| Leakage Current | 352.5uA |
| Length | 13.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Ripple Current | 900mA |
| RoHS Compliant | Yes |
| Series | UCD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| DC Rated Voltage | 50V |
| RoHS | Compliant |
