Aluminum electrolytic capacitor, 33µF capacitance, 80V voltage rating, and 20% tolerance. Features a 130mA ripple current, 26.4µA leakage current, and 1.3Ω impedance. With a 2000-hour life at 105°C, this surface mount component is AEC-Q200 qualified and RoHS compliant. Packaged in tape and reel, it offers a cylindrical construction with 8mm diameter and 10mm height.
PackageRadial
Voltage80V
Capacitance33uF
Voltage Rating80V
Quick Jump:
Technical Specifications
Nichicon UCD1K330MNL1GS technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 0.08% |
| Features | General Purpose |
| Height | 10mm |
| Height - Seated (Max) | 0.394inch |
| Impedance | 1.3R |
| Leakage Current | 26.4uA |
| Length | 10mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Ripple Current | 130mA |
| RoHS Compliant | Yes |
| Series | CD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 80V |
| Voltage Rating | 80V |
| DC Rated Voltage | 80V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCD1K330MNL1GS Datasheet
Download the complete datasheet for Nichicon UCD1K330MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

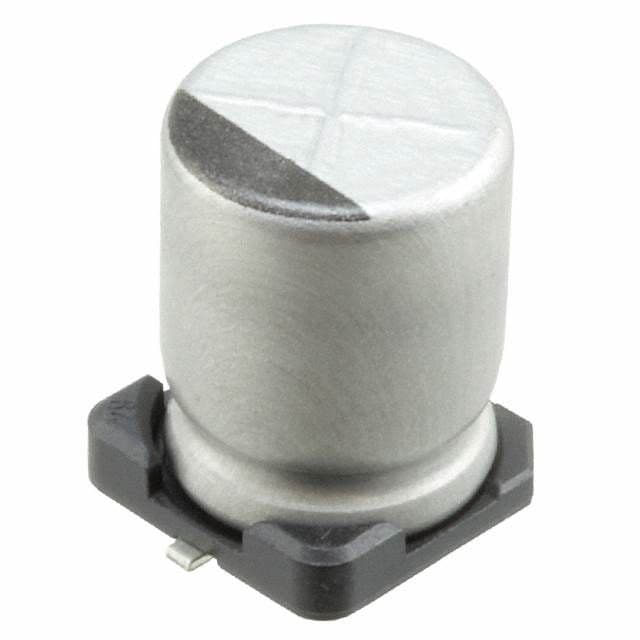

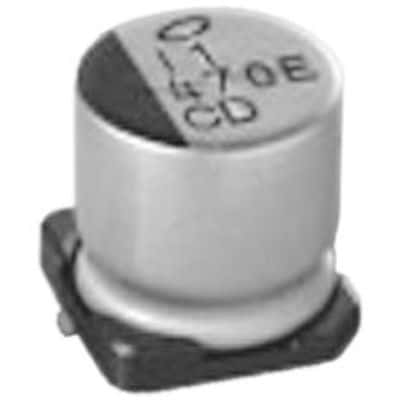

Product Images
