100µF, 35V aluminum electrolytic capacitor with 20% tolerance. Features a 600mA ripple current rating and low impedance of 160mR. Designed for surface mount applications with a cylindrical, radial package measuring 8mm in diameter and 10mm in height. Operates across a wide temperature range from -55°C to 105°C, offering 5000 hours of life. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage35V
Capacitance100uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UCD1V101MNL1GS technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dissipation Factor
0.12%
Height
10mm
Impedance
160mR
Leakage Current
3uA
Length
10mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Ripple Current
600mA
RoHS Compliant
Yes
Series
CD
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCD1V101MNL1GS Datasheet
Download the complete datasheet for Nichicon UCD1V101MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

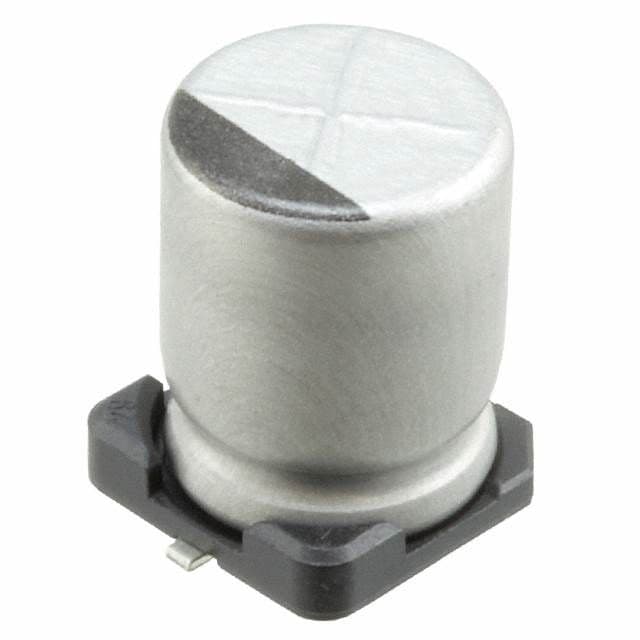

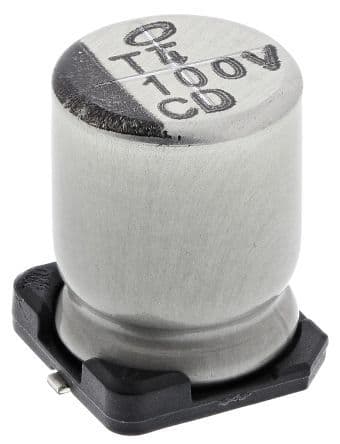

Product Images
